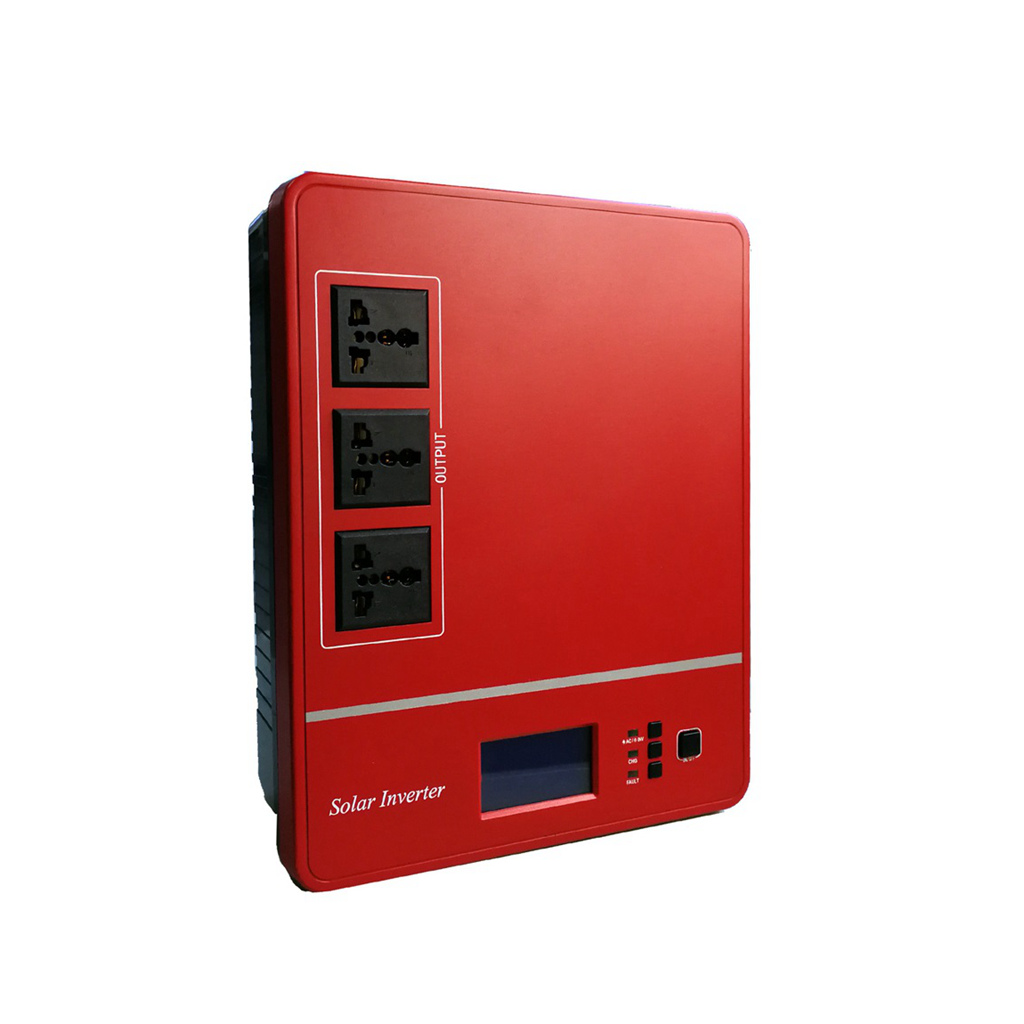

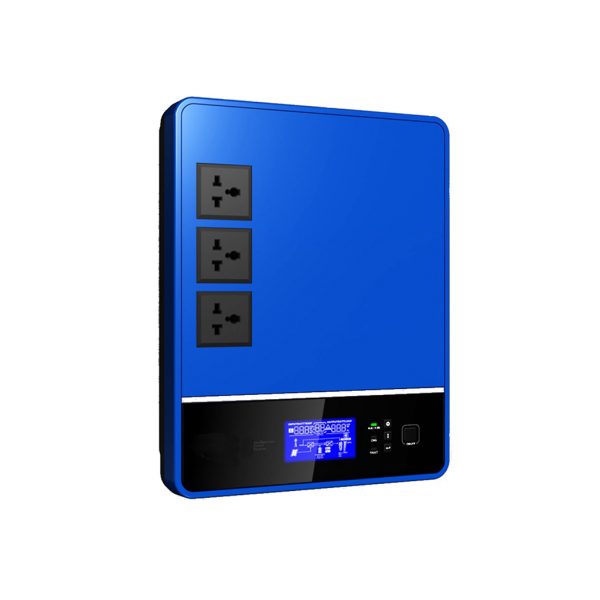

Hybrid Modified Sine 1.2/2.4kVA
This is a multi-function machine, combining functions of inverter, PWM solar charger and UPS module to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Description
| Model | P-HS 1.2KVA | P-HS 2.4KVA |
| Rated Power | 1200VA/ 720W | 2400VA/ 1440W |
| Battery Voltage | 12 VDC | 24 VDC |
| INVERTER OUTPUT | ||
| AC Voltage Regulation (Battery Mode) | 230VAC ± 5% | |
| Efficiency (Peak) | >80% | |
| Line Mode Efficiency | >98% | |
| Waveform | Modified sine wave | |
| PWM SOLAR CHARGER | ||
| Maximum PV Array Power | 500 W | 1000W |
| MPPT Range @ Operating Voltage | 16VDC~ 55VDC | 30VDC~32VDC |
| Maximum PV Array Open Circuit Voltage | 45VDC | 55VDC |
| Maximum Solar Charge Current | 50A | |
| Maximum Efficiency | >95% | |
| Standby Power Consumption | <2 W | |
| AC CHARGER | ||
| Charge Current | 10A / 20A (Can be set) | |
| AC BYPASS | ||
| Transfer Time | Typical 15~20ms, 40ms max | |
| Overload Protection (SMPS Load) | Fuse | |
| Output Short Circuit Protection | Fuse | |
| Max Bypass Current | 10A | |
| Physical | ||
| Dimension(mm) | 290*235*88 | |
| Net Weight(kg) | 2.6 | 2.8 |
| OPERATING ENVIRONMENT | ||
| Operating Temperature | 0°C ~ 50°C | |
| Audible Noise | 50db MAX | |
